Part Number:

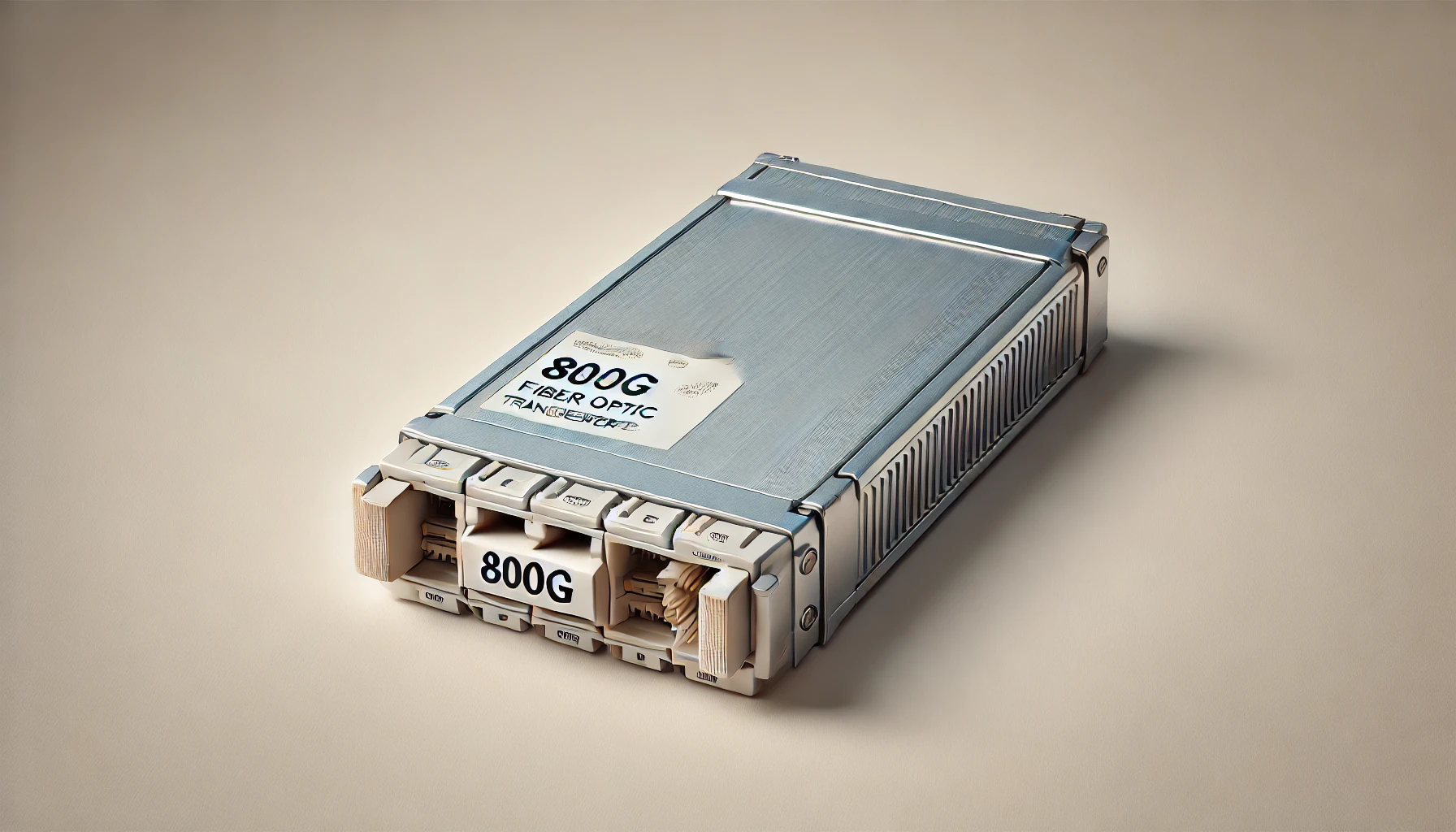

Description: The 800G OSFP SR8 100m Transceiver is a high-quality optical module designed for utilization in 800 Gigabit Ethernet links over multimode fiber. The module features 8 independent electrical input/output channels, operating at 106.25Gbps per channel. This transceiver comprises two transmitter/receiver units, each functioning at 850nm wavelengths. The maximum transmission distance is 100m on OM4 MMF. The module’s electrical interface complies with the 800GAUI-8 interface as defined by IEEE 802.3ck, and it is also compliant with the OSFP MSA. It finds utility in various network applications, including internet protocol switches and routers

Date Rate: 800G

Component: VCSEL+PIN

Rec. Sens: -4.6dBm

Case Temp: C

Multi Rate: N

Category: 800G

Package: OSFP

Wavelength: 840nm~860nm

Output Power: -4.6~+4dBm

Connector: MPO

Reach: 60m(OM3)/100m(OM4/OM5)

Application: 800G Ethernet, Data Center Switch
