Part Number:

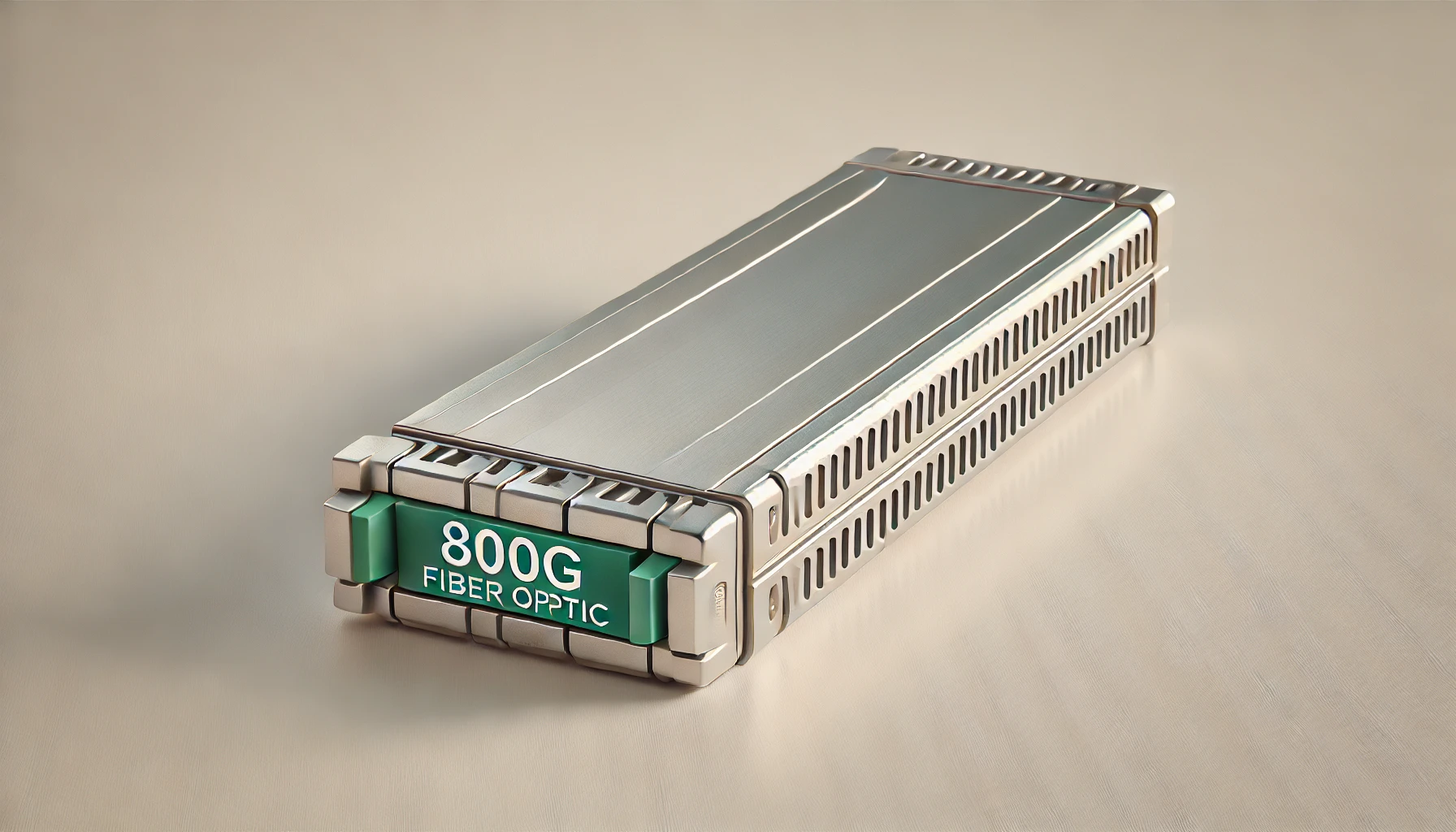

Description: The OSFP 2*FR4 transceiver is a high-quality optical transceiver designed for utilization in 800 Gigabit Ethernet links over 2 km of single-mode fiber. This 800G FR 2km transceiver features 8 independent electrical input/output channels, operating at speeds of up to 106.25 Gbps per channel. This 800g OSFP 2*400 FR4 transceiver is composed of two transmitter/receiver units, with each unit functioning across a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300 nm.The 800G transceiver’s electrical interface conforms to the 800GAUI-8 standard defined by IEEE 802.3ck, , and it is also compliant with the OSFP MSA. It is suitable for deployment in various network applications, including Internet protocol switches and routers

Date Rate: 800

Component: EML+PIN

Rec. Sens: -4.6dBm

Case Temp: C

Multi Rate: N

Category: 800G

Package: OSFP

Wavelength: 1264.5nm~1337.5nm

Output Power: -3.2~+4dBm

Connector: LC

Reach: 2km

Application: 800G Ethernet, Data Center Switch, Data Center Interconnect
