Part Number:

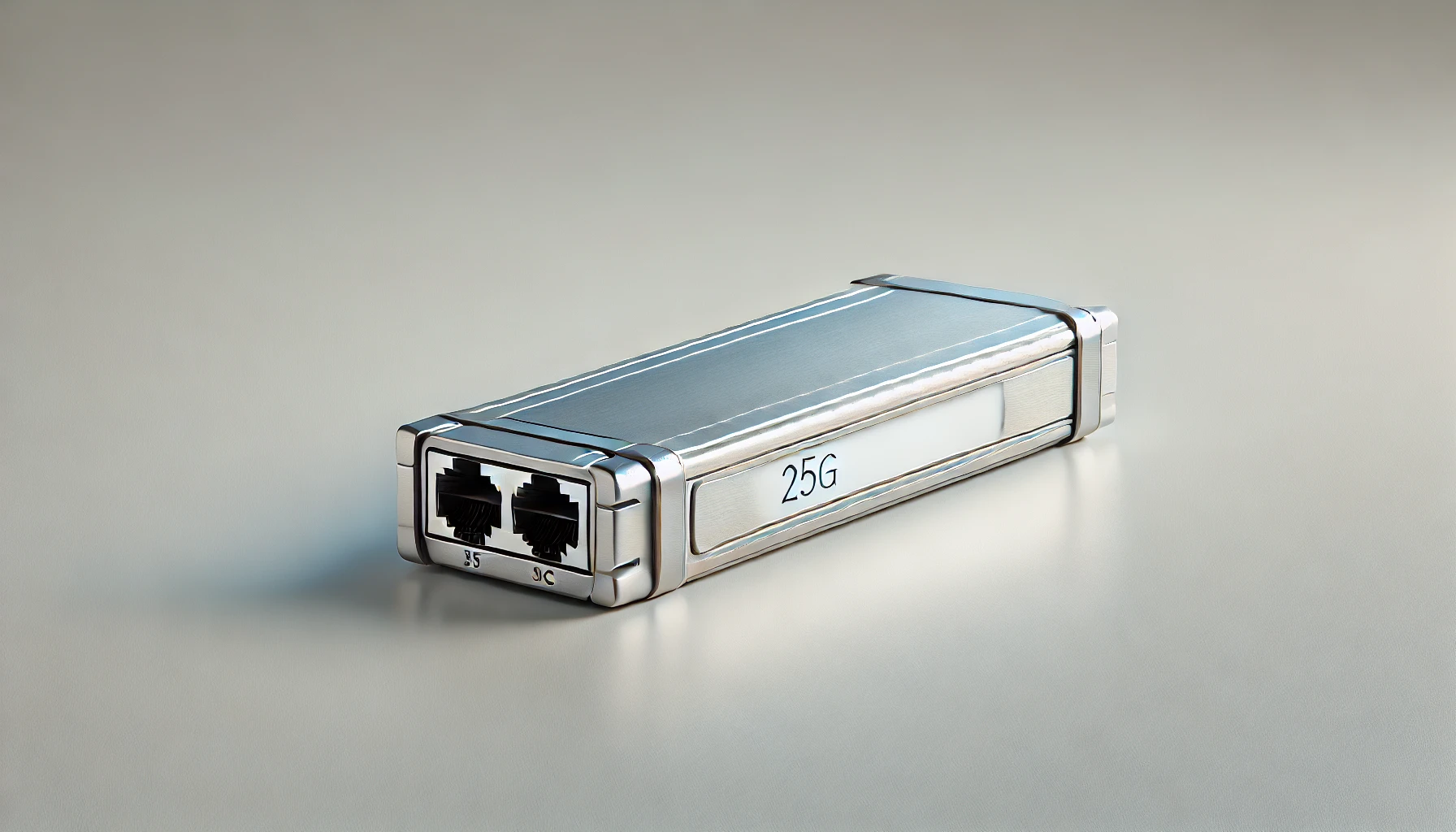

Description: The 25G DWDM Tunable SFP28 transceiver is a high-performance, 25G DWDM tunable module for duplex optical data communications, supporting 48 channels (191.3~196.0THz) wavelength adjustment with 100GHz channel spacing. This SFP28 DWDM module is designed for use in 28Gb/s links up to 15KM of G.652 single mode fiber. Featured with a high-performance transmitter of DBR+SOA+MZ and high sensitivity APD receiver, this transceiver is well suited for 5G front-haul and back-haul network, data center core network and enterprise campus network. Digital diagnostics functions are available via an I2C interface, as specified by SFF-8472 and SFF-8402. It has built-in clock and data recovery (CDR).

Date Rate: 25G

Component: DBR-MZ+PIN/APD

Rec. Sens: -13dBm/-19dBm(with fiber)

Case Temp: C/E

Multi Rate:

Category: 25G

Package: SFP28

Wavelength: 191.3~196.0THz

Output Power: 0~+4dBm

Connector: LC

Reach: 15KM

Application: 25G DWDM Tunable SFP28
