Part Number:

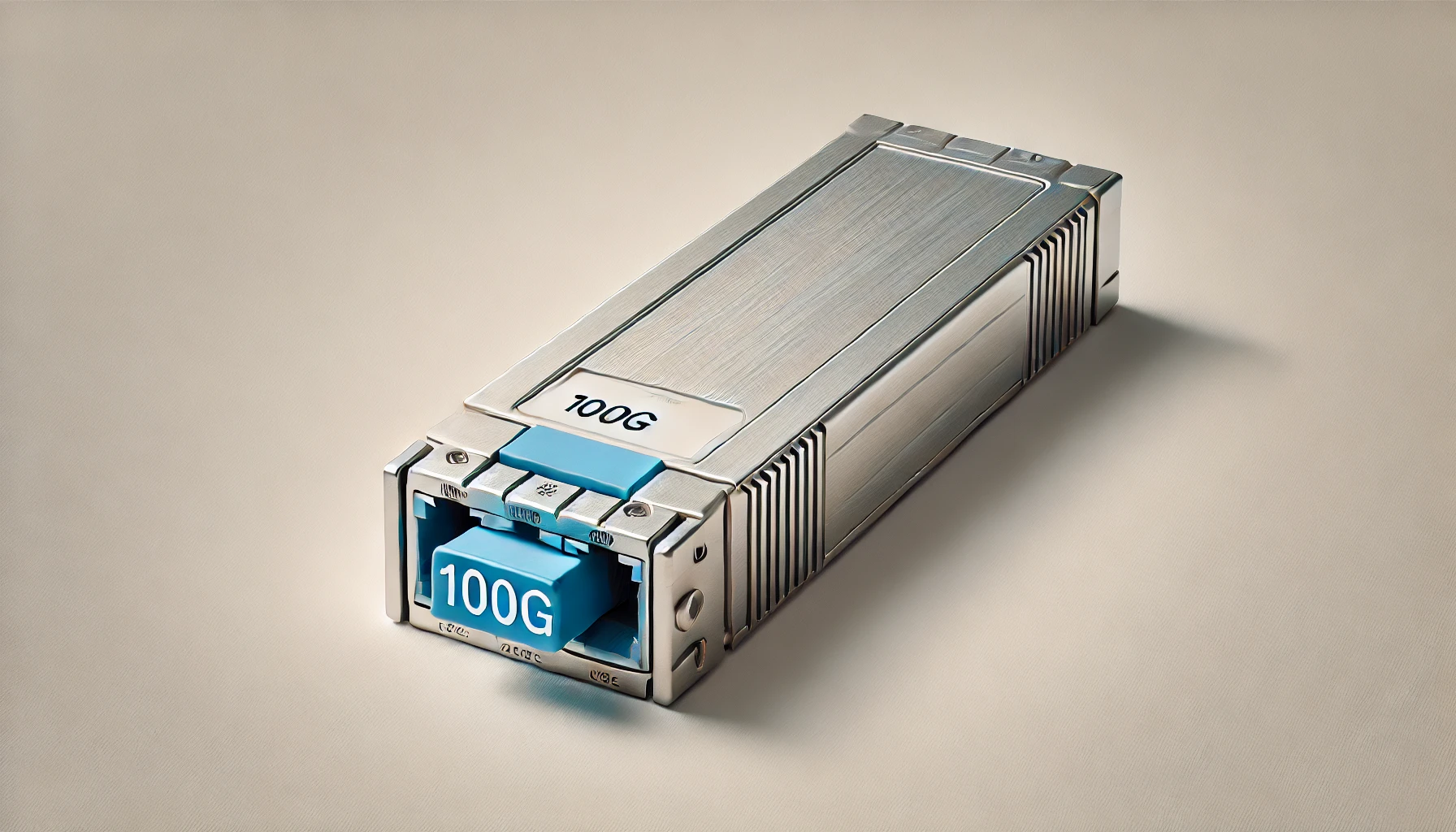

Description: The 100GBASE-LR4 QSFP28 I-temp Transceiver optical modules are generally used together with LC single-mode fiber jumpers, and the maximum transmission distance can reach 10km. It adopts 4 LAN-WDM lanes MUX/DEMUX design, and hot-pluggable QSFP28 footprint, which also has 4 independent full-duplex channels that can up to 25Gbps data rate per wavelength.Its power dissipation is below 5W, and can be operated from -40℃ to 85℃.This module can be applied to 100G BASE and 100G Ethernet.

Date Rate: 100G

Component: DML+PIN

Rec. Sens: -8.6dBm

Case Temp: I

Multi Rate: Y

Category: 100G

Package: QSFP28

Wavelength: 1296/1300/1305/1309nm

Output Power: -4.3~+4.5dBm

Connector: LC

Reach: 10KM

Application: 100G Ethernet, Data Center Internect
