Part Number:

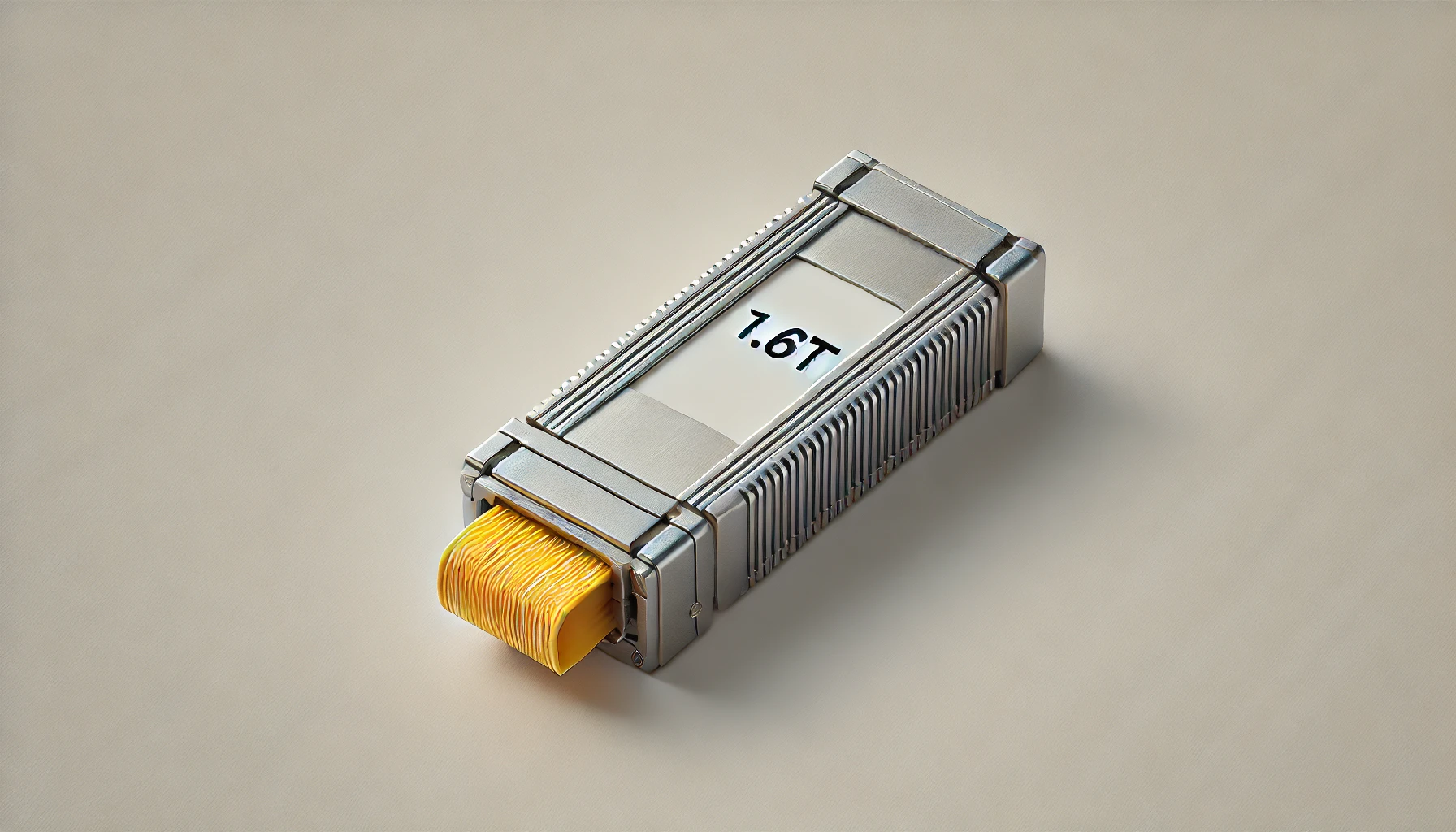

Description: The 1.6T OSFP-XD DR8 optical transceiver in OSFP-XD package is designed for facilitating 1.6T Ethernet connections over distances of up to 500 meters through single-mode fiber. It features 16 independent electrical input/output channels at 106.25Gbps per channel and 8 independent optical input/output channels at 212.5Gbps per channel. it includes two transmitter/receiver units, and the transmitter unit utilizes a 1310nm EML laser with cooling. The electrical interface is compliant with the 2*800GAUI-8 standard defined by IEEE P802.3df. The DSP utilizes the latest 5nm process, reducing typical power consumption to 22W

Date Rate: 1.6T

Component: PIN+PD

Rec. Sens: -3.9dBm

Case Temp: C

Multi Rate: N

Category: 1.6T

Package: OSFP-XD

Wavelength: 1310nm

Output Power: -2.9~+4dBm

Connector: 2*MPO-12

Reach: 500m

Application: AI, Data Center, 1.6T Ethernet
